Equipment Overview

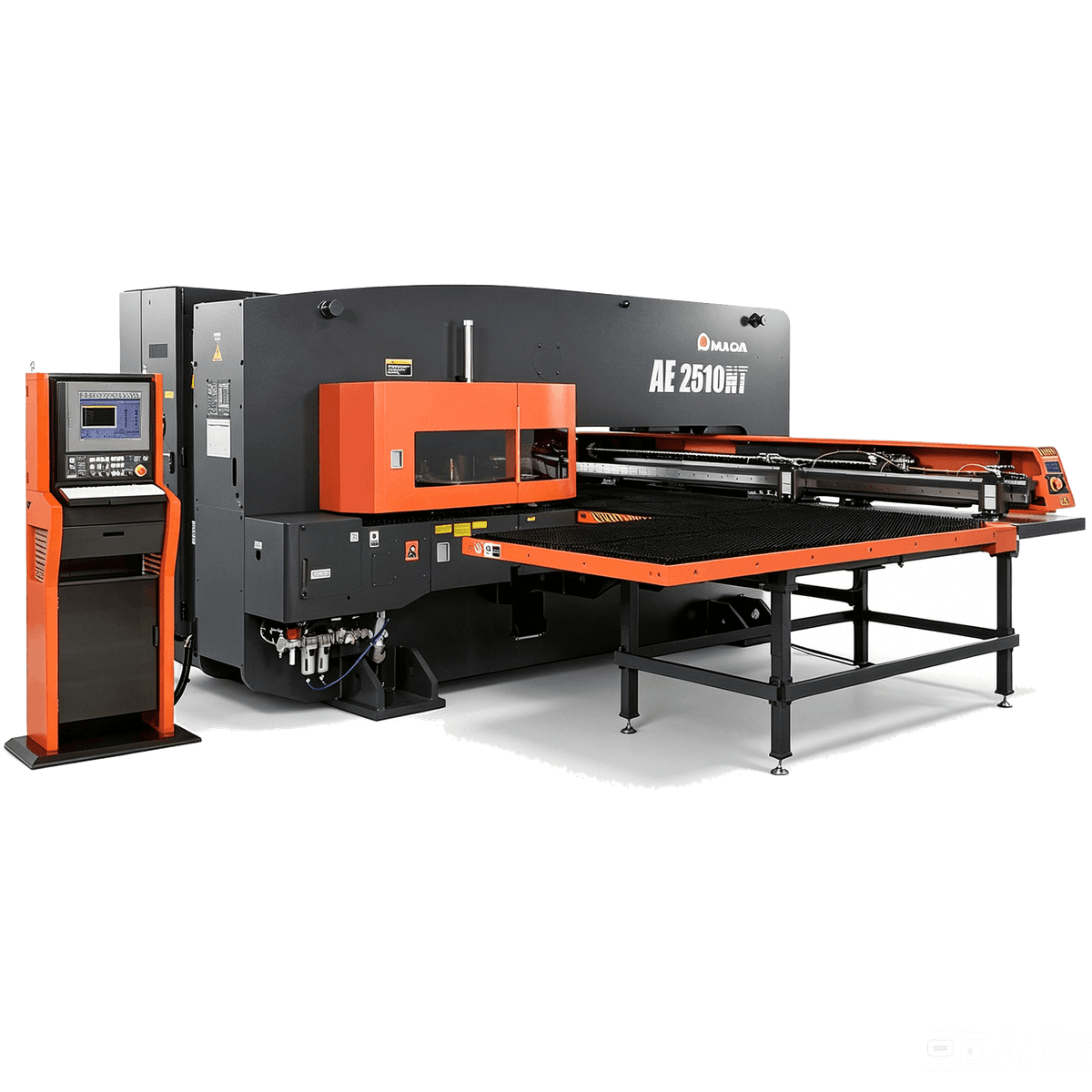

The AMADA AE 2510NT is a compact all-servo turret punch press (NCT) engineered for high-speed, high-precision sheet metal fabrication in high-volume and multi-variety production environments. Its core engineering philosophy centers on lean, low-total-cost productivity—delivered through an AC servo direct drive system, a heavy-duty rigid bridge frame, and a space-saving footprint that processes full 4'×8' (1270×2500mm) sheets without repositioning, making it an optimal choice for sheet metal workshops looking to maximize floor space utilization while cutting operating expenses.

Key Advantages

1. All-Servo Drive for Low-Cost, Eco-Friendly Operation

AC servo direct drive system eliminates hydraulic oil, pipelines and related maintenance, cutting power consumption by up to 60% compared with conventional hydraulic punch presses.

2. Ultra-High Punching Speed for Mass Throughput

Delivers up to 350 hits per minute at 1" pitch and 900 strokes per minute for marking, drastically shortening single-part cycle time.

Fast axis positioning and rapid index tool change maximize efficiency for multi-hole, multi-contour batch sheet metal parts.

3. Heavy-Duty Rigidity for Stable Long-Term Precision

40mm-thick high-rigidity bridge frame and 120mm heavy-duty turret suppress vibration during high-speed punching, maintaining steady positioning accuracy of ±0.07mm in fine mode.

Robust construction ensures consistent part quality and minimal accuracy drift under 24/7 continuous operation.

4. Multi-Station Indexable Tooling for All-in-One Processing

Equipped with up to 58 tool stations with auto-index function, integrating punching, forming, tapping, V-grooving, deburring and marking in a single setup.

Eliminates secondary handling and re-processing steps, reducing overall production lead time significantly.

5. Scratch-Free Sheet Handling for Appearance-Grade Parts

Floating brush worktable enables smooth sheet transport without surface scratches, ideal for pre-coated sheets, stainless steel decorative panels and appearance-grade components.

Processes full 1270×2500mm (4'×8') standard sheets without repositioning, improving material utilization.

6. Intelligent CNC System for Easy Operation

AMNC networked CNC system supports offline programming, real-time production monitoring and tool management.

Built-in fault self-diagnosis and intuitive operation interface lower operator skill barriers and simplify daily maintenance.

Key Technical Specifications

Model: AE 2510NT

Drive System: Single AC servo direct drive (hydraulic-free design)

Rated Press Capacity: 200 kN (20 tons)

Frame Structure: 40mm-thick high-rigidity integral bridge frame

Maximum Processing Area (without repositioning): 2500 mm (X-axis) × 1270 mm (Y-axis), compatible with standard 4'×8' sheet metal

Max Material Thickness (standard brush table): 3.2 mm (mild steel); optional high-density brush table supports up to 6.4 mm

Max Workpiece Weight (standard configuration): 50 kg

Hit Rate (25.4 mm pitch, 5 mm stroke): 350 hits/min (X-axis), 280 hits/min (Y-axis)

Peak Marking / Micro-pitch Hit Rate: 900 hits/min (0.5 mm pitch, 1.4 mm stroke)

Turret Rotation Speed: 30 rpm

Auto-index Station Rotation Speed: 60 rpm

Max Axis Feed Speed: 80 m/min (X-axis), 60 m/min (Y-axis)

Positioning Accuracy: ±0.1 mm (standard mode); ±0.07 mm (FA fine precision mode)

Worktable: Floating brush table for scratch-free sheet material transport

NC Controller: AMNC/PC networked CNC system

Core Functions: offline programming, real-time production monitoring, tool life management, fault self-diagnosis

Power Supply Demand: 19 kVA

Max Compressed Air Consumption: 750 NI/min

Machine Weight: approx. 12,000 – 13,000 kg (12 – 13 metric tons)

Machine Description

Longwang application example: a precision electrical cabinet manufacturer adopted the AE 2510NT to produce 1.5mm galvanized steel enclosure panels, integrating punching, V-grooving, and tapping operations into a single setup. With a punching rate of up to 350 hits per minute on 1" pitch and 900 strokes per minute for marking, the machine reduced overall part production cycle time by more than 50% and eliminated secondary deburring and bending preparation processes, outperforming conventional hydraulic punch presses by a wide margin.

At its core, the AE 2510NT features a 40mm-thick high-rigidity bridge structure, an advanced AMNC networked CNC system, and a maintenance-free AC servo drive mechanism that slashes power consumption by up to 60% compared to hydraulic counterparts. Its 120mm-thick heavy-duty turret with up to 58 tool stations and auto-index capability supports versatile forming, tapping and deburring functions, while the floating brush table guarantees scratch-free material transport. This combination translates directly into faster tool changeovers, stable punching accuracy of ±0.07mm in fine mode, and the flexibility to process carbon steel, stainless steel, aluminum alloy and galvanized sheet with consistent, long-lasting performance under continuous production
